Technical Parameter

ModelHGLASER
Power supply3P/380V/50HZ or Customized
Effective Cutting width (mm)1500/2000/2500
Effective Cutting length(mm)3000/4000/6000/8000/10000/12000
Laser resonator8W to 30KW
Max position speed140m/min
Position accuracy±0.05mm/m
Repeated accuracy0.03mm/m
Max loading weight2*900KG (1500x3000 size)
Machine Weight11500KG (1500x3000 size)

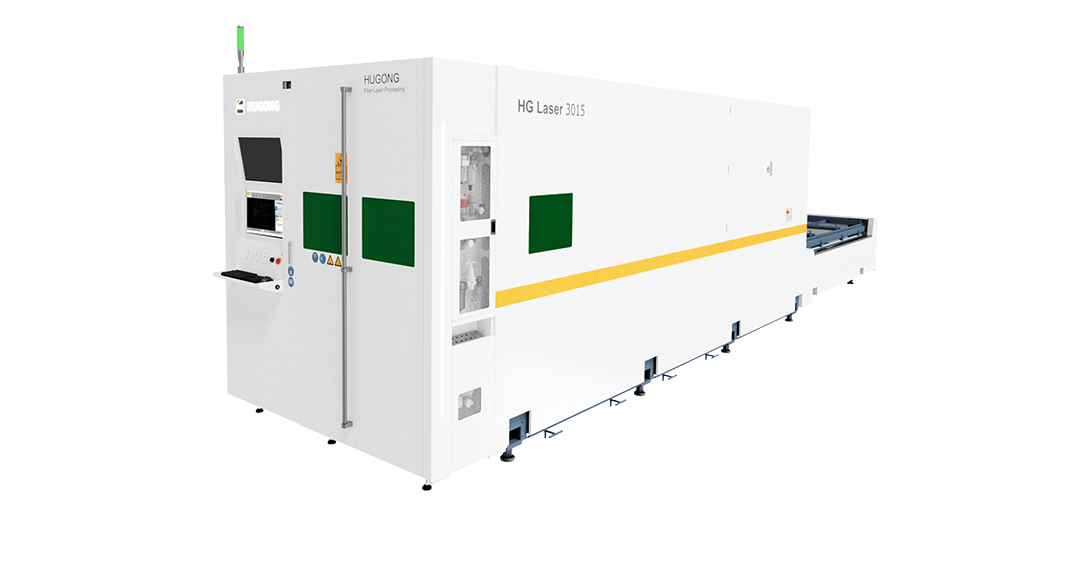

Class 1 safety level

Machine is 100% fully enclosed without any laser leakage. A lot of safety switches and circuits are installed on the machine, class 1 safety level. CE and CSA certificated.


Heavy duty structure machine frame

Heavy duty machine frame design with 11 ton weight (3015 size). Welding structure with distressing and special protection from thermal, complicated and excellent frame design to achieve very high performance
Machine frame is processed by by heat treatment to keep high accuracy all the time.


Zoned down draft table

8 zoned automatic down draft table by mechanical damper, high efficiency for working fume extractor.



High Quality Aluminum Gantry

Machine gantry is made of high pressure drawn aluminum (level 6) with high strength design
Very light weight and small inertia, make sure machine can working in very high-speed and acceleration.


Top brand key components, Excellent quality


Video

Cutting Samples
