Technical Parameter

ModelINTECUT 3/ INTECUT 6
Power supply3P/380V/50HZ or Customized
Effective Cutting width (mm)1500
Effective Cutting length(mm)3000/6000
Plasma PowerHypertherm Powermax series
Thermal Dynamics CutMaster series
Max position speed6m/min
Position accuracy±0. 5mm/m
Repeated accuracy0.2mm/m
Flame cutting thickness5-70mm
Plasma cutting thicknessDue to plasma power

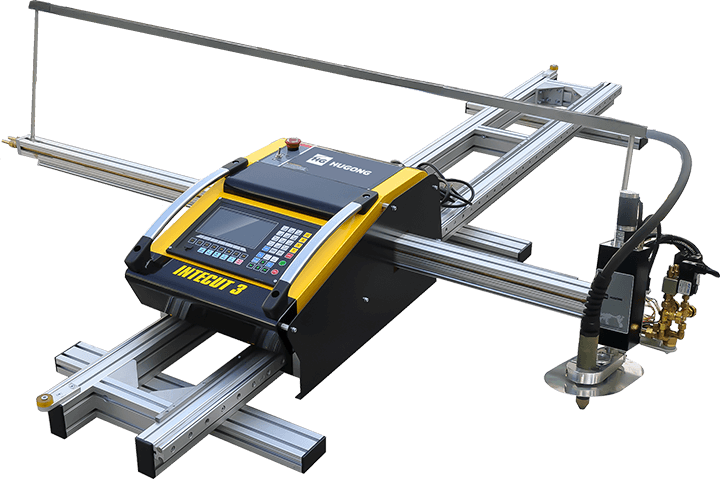

Portable design

Compact and portable design, easy transportation and installation.


High quality cutting

Excellent cutting performance with air plasma power source. Ready to work with Hypertherm Powermax series, Thermal Dynamics CutMaster series.

Stepper motor drive

Good brand stepper motors on X Y axis.

Automatic torch height control

Machine is produced with automatic torch height control. Arc voltage THC with DC motor lifting make sure the cutting torch stay at same height during cutting process.

Top brand key components, Excellent quality



Video

Cutting Samples
