Technical Parameter

ModelHGCUT
Power supply3P/380V/50HZ or Customized
Effective Cutting width (mm)≥2000
Effective Cutting length(mm)≥6000
Plasma PowerHypertherm XPR, HPR series
Thermal Dynamics Ultra-cut series
Kjellberg HiFocus series
Max position speed24m/min
Position accuracy±0. 5mm/m
Repeated accuracy0.2mm/m
Flame cutting thickness5-150mm
Plasma cutting thicknessDue to plasma power

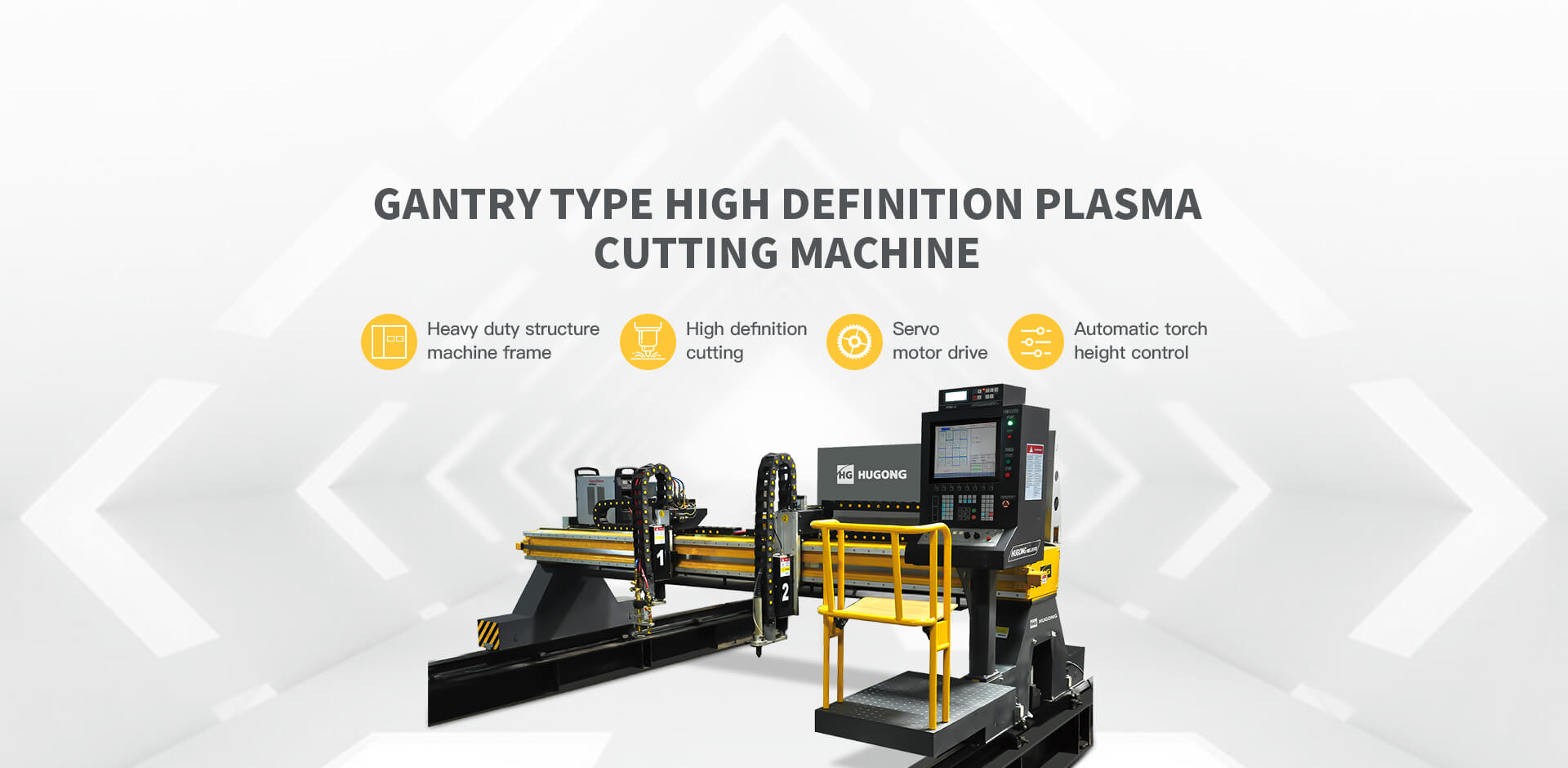

Heavy duty structure machine frame

Complicated excellent frame design to achieve high cutting performance, machine frame is processed by heat treatment to keep high accuracy all using life.


High definition cutting

Excellent performance with high definition plasma cutting quality. Ready to work with high definition plasma power, Hypertherm HPR, XRP series, Thermal Dynamics Ultra-cut series, Kjellberg HiFocus series.


Servo motor drive

High power Panasonic servo motor on X Y Z axis.



{pboot:if('

Automatic torch height control

Machine is produced with automatic torch height control system. Sensor THC with servo motor lifting system make sure the cutting torch stay at same height during cutting process.


'!='')}

Automatic torch height control

Machine is produced with automatic torch height control system. Sensor THC with servo motor lifting system make sure the cutting torch stay at same height during cutting process.


{/pboot:if}

Video

Cutting Samples
