Technical Parameter

ModelINTELASER
Power supply3P/380V/50HZ or Customized
Effective Cutting width (mm)1500/2000/2500
Effective Cutting length(mm)3000/4000/6000/8000
Laser resonator1KW to 3KW
Max position speed100m/min
Position accuracy±0.05mm/m
Repeated accuracy0.03mm/m
Max loading weight900KG (1500x3000 size)
Machine Weight3000KG (1500x3000 size)

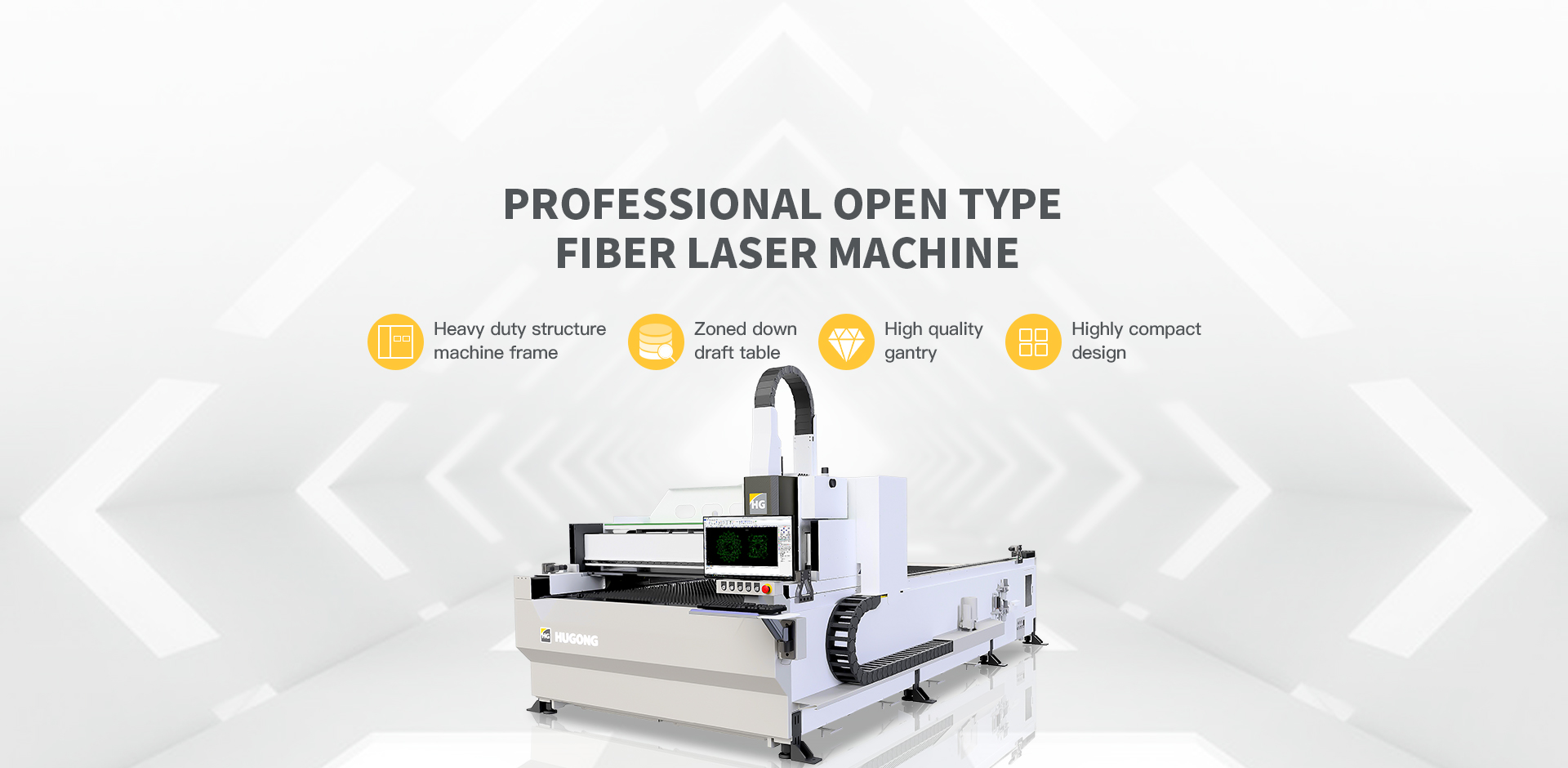

Heavy duty structure machine frame

Heavy duty machine frame design with 3 ton weight (3015 size). Welding structure with distressing and special protection from thermal, complicated and excellent frame design to achieve very high performance.
Machine frame is processed by heat treatment to keep high accuracy all the time.


Zoned down draft table

8 zoned automatic down draft table by mechanical damper, high efficiency for working fume extractor.




High Quality Aluminum Gantry

Machine gantry is made of high pressure drawn aluminum (level 6) with high strength design Very light weight and small inertia, make sure machine can working in very high-speed and acceleration.


Highly compact design

Excellent compact design, machine is fully assembled shipment. Laser resonator, cutting head etc are all installed during shipment, no re-assembled and wiring jobs during on-site installation. One worker can finish installation within 3 hours.


Video

Cutting Samples
