HGZL-1500

Dual Hydraulic Synchronous Intelligent Alignment System

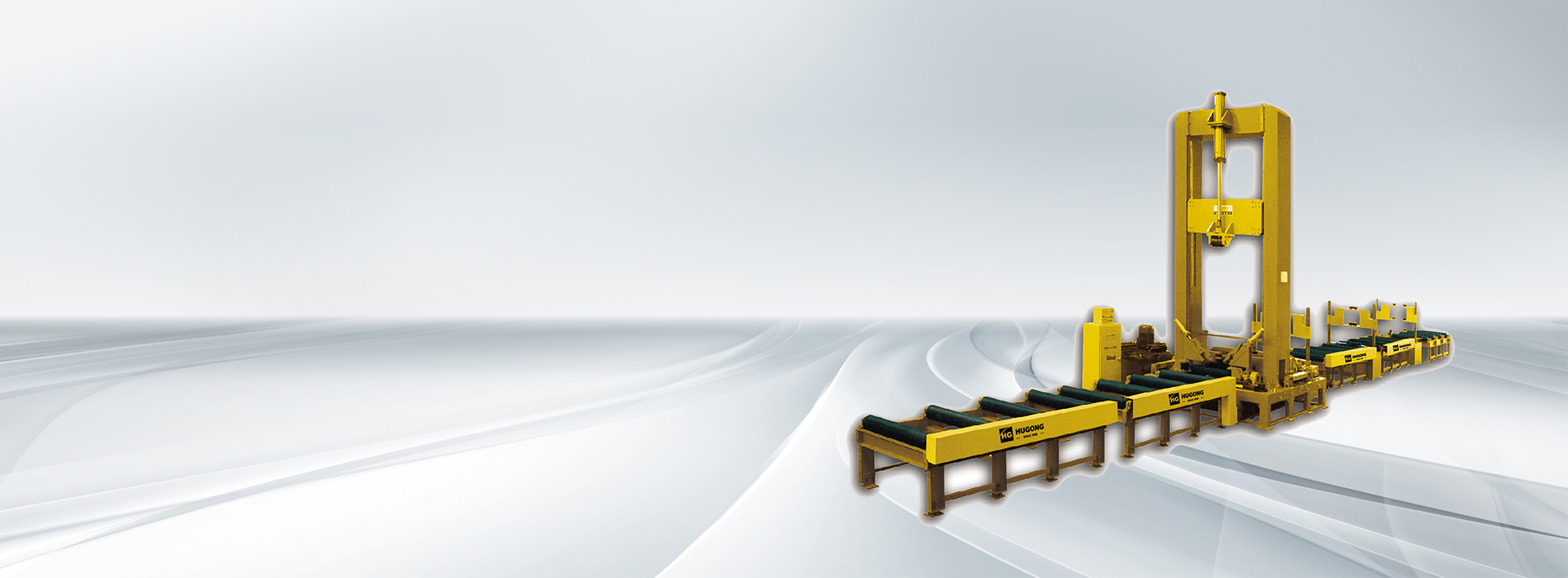

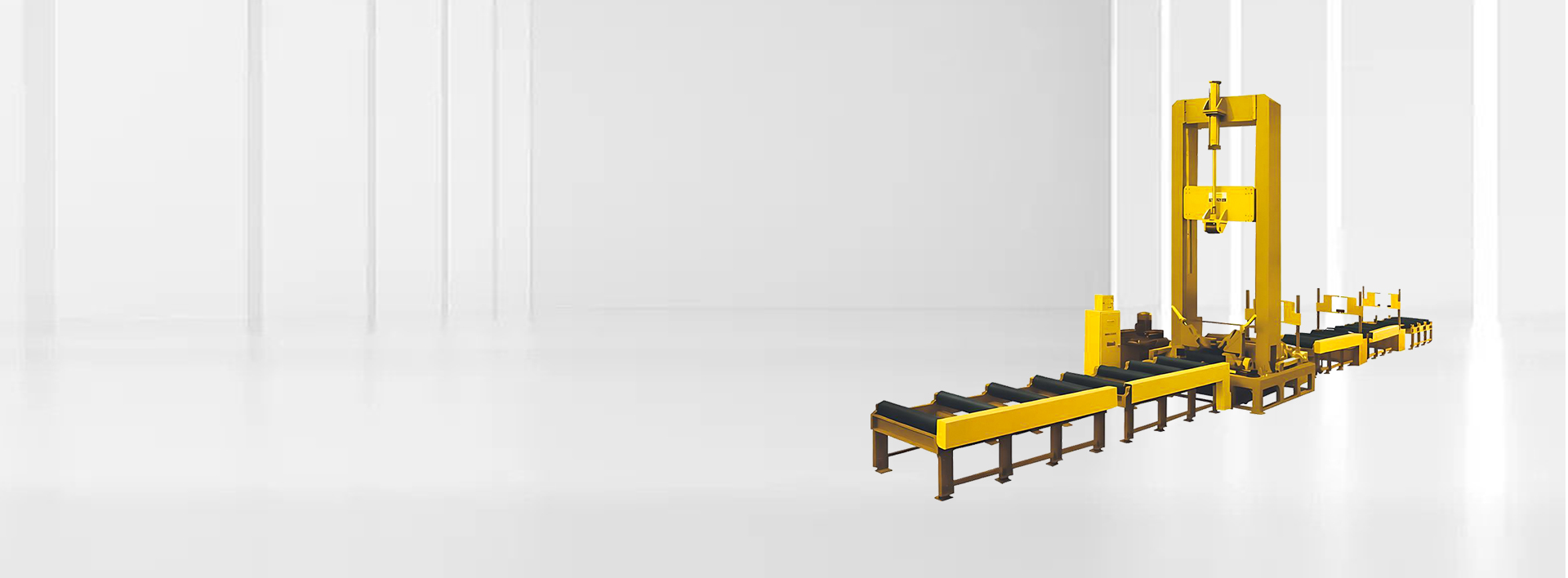

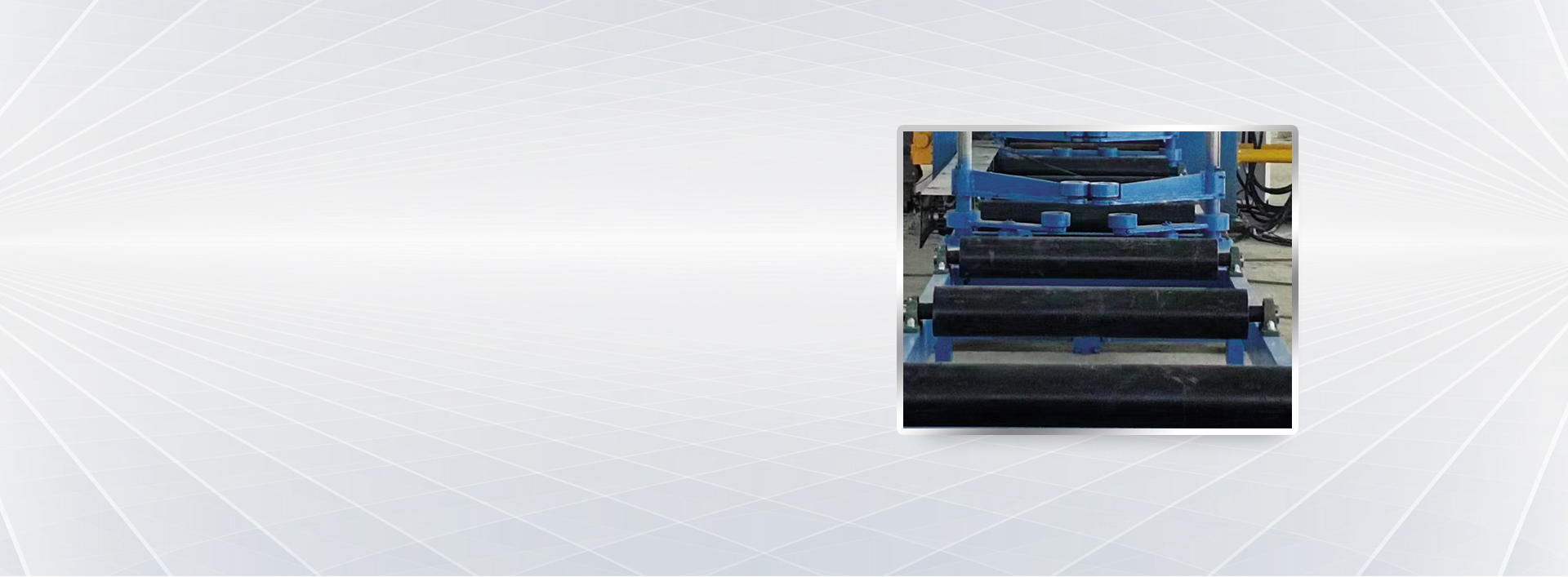

This machine is our new generation H-beam assembly machine, which can provide more automation: firstly, in the central part, it combines a hydraulic motor group with left and right screws to achieve synchronous clamping and loosening of the left and right sides. During the alignment process, compensation using a short stroke hydraulic cylinder was utilized to achieve automatic alignment and clamping. Accurate centering, simple operation, and easy maintenance.

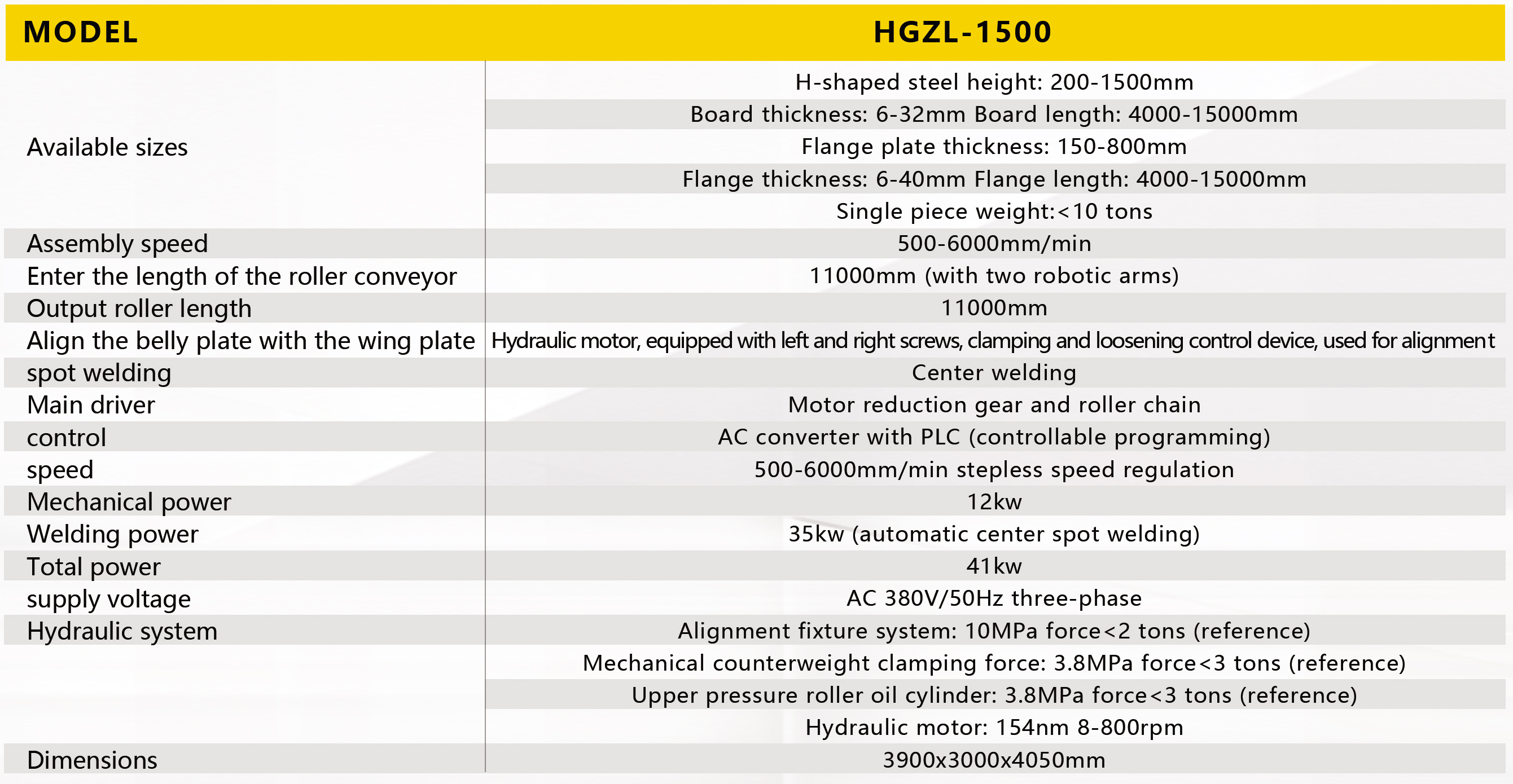

Model	HGZL-1500
Available sizes	H-shaped steel height: 200-1500mm
	Board thickness: 6-32mm Board length: 4000-15000mm
	Flange plate thickness: 150-800mm
	Flange thickness:6-40mm Flange length: 4000-15000mm
	Single piece weight:<10 tons
Assembly speed	500-6000mm/min
Enter the length of the roller conveyor	11000mm (with two robotic arms)
Dutput roller length	11000mm
Align the belly plate with the wing plate	Hydrauic motor,equipped with left and rightscews damping and losening contro device used foralignment
spot welding	Center welding
Main driver	Motor reduction gear and roller chain
control	AC converter with PLC (controllable programming)
speed	500-6000mm/min stepless speed regulation
Mechanical power	12kw
Welding powe	35kw (automatic center spot welding)
Total power	41kw
supply voltage	AC 380V/50Hz three-phase
Hydraulic system	Alignment fixture system: 10MPa force<2 tons (reference)
	Mechanical counterweight clamping force: 3.8MPa force<3 tons (reference)
	Upper pressure roller oil cylinder: 3.8MPa force<3 tons (reference)
	Hydraulic motor: 154nm 8-800rpm
Dimensions	3900x3000x4050mm
