Cutting varieties of pipe
Rectangular pipe, square pipe, round pipe, oval pipe, angle steel, channel steel.
High-level safety
Multiple safety circuit interlocking and cutting state induction to ensure the safety of personnel and equipment during processing

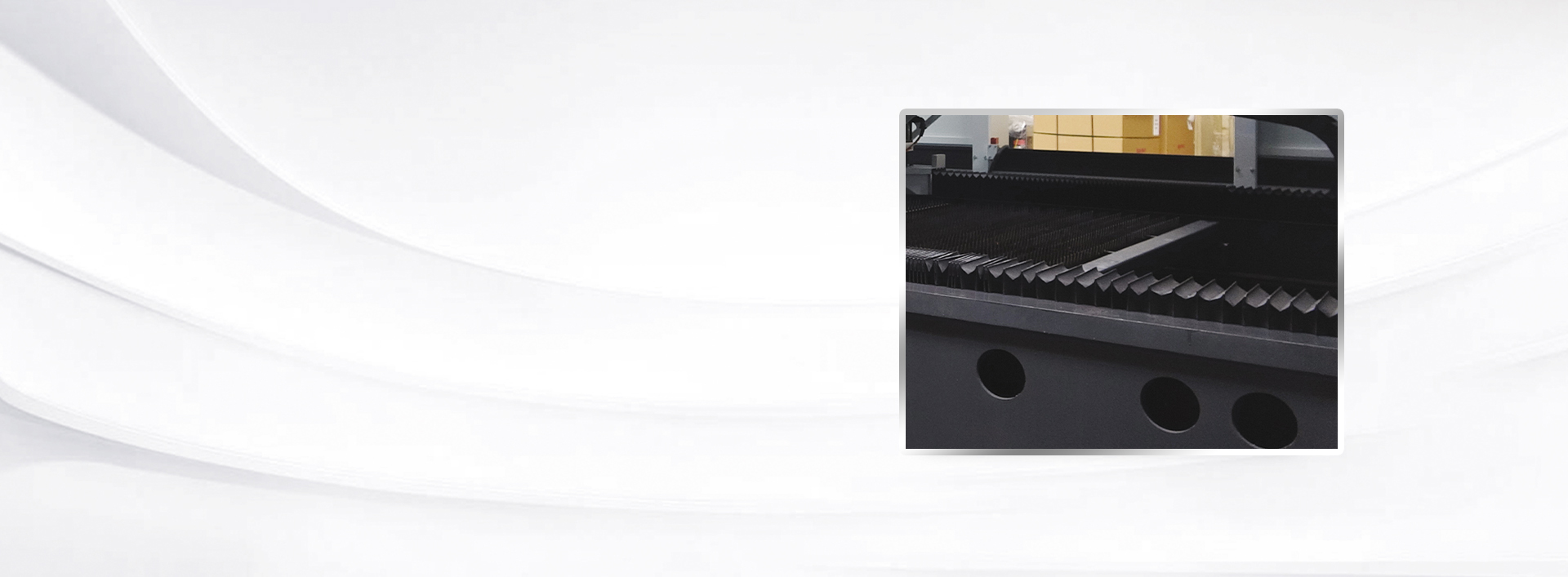

Exchange platform
The exchange time is very short and the operation is simple with horizontal exchange table.
High precision retentivity
Finite element analysis optimizes the design of high strength aluminum alloy extrusion molding beams. table is welded by steel plate,annealing stress removal treatment ensures long-term stability of precision.
Model ECOLASER-T-3O15 ECOLASER-T-6015
Effective cutting size (mm) 3000x1500 6000x1500
Laser Power range 1.5KW/2KW/3KW/4KW/6KW/ 12KW optional
Tube diameter 20-220mm(round)15x15-150x150mm(square)
Max linkage speed 80m/min
Maximum acceleration 0.8G
positioning Accuracy +0.05mm
