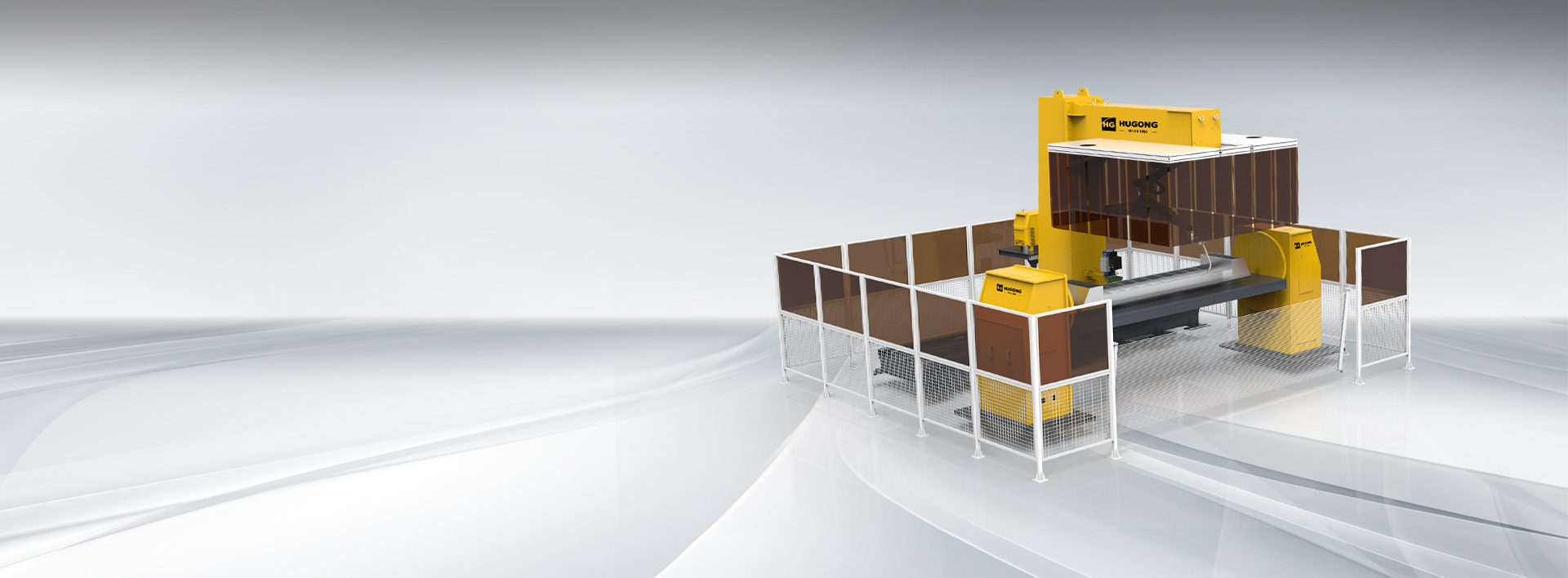

HGR-C series

C-Type Mobility

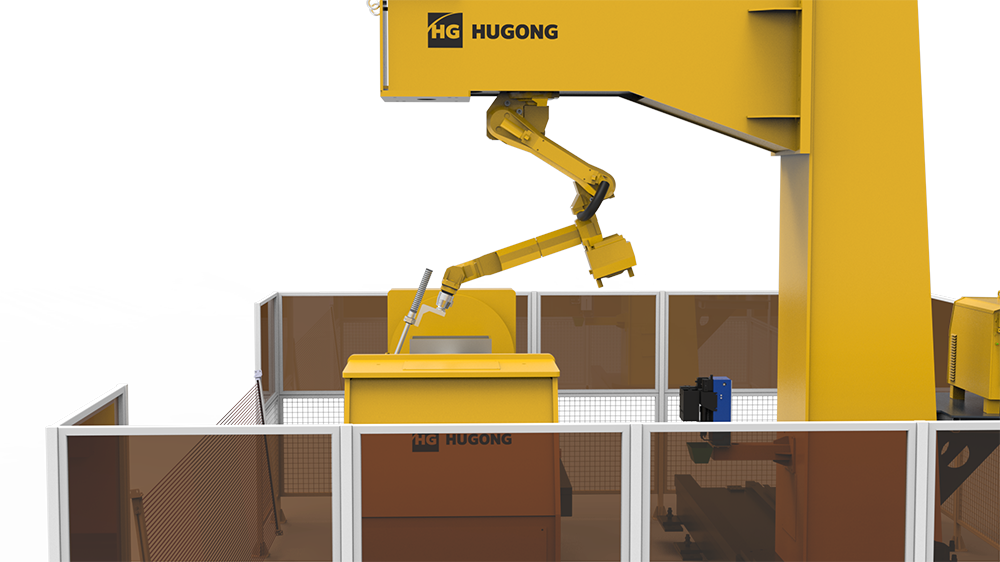

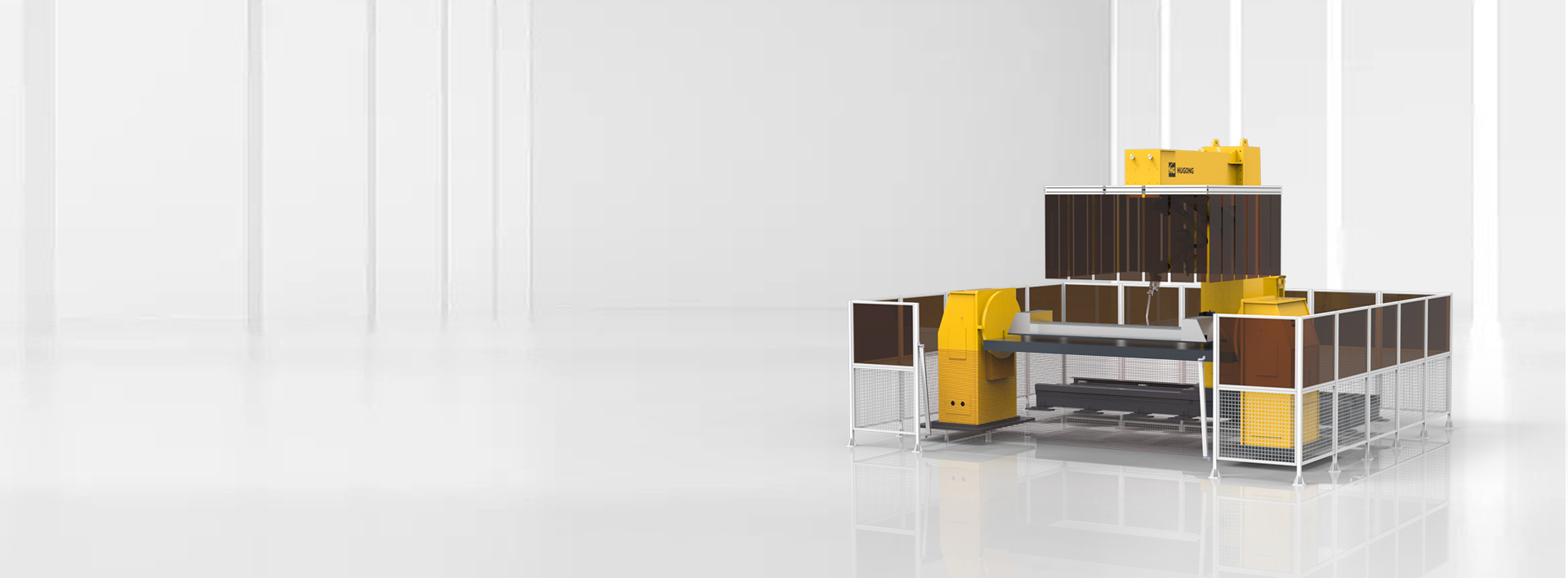

The robot adopts C-type inverted hanging + walking form, can complete the width of 4m or less work- piece welding.

Adaptive Configuration

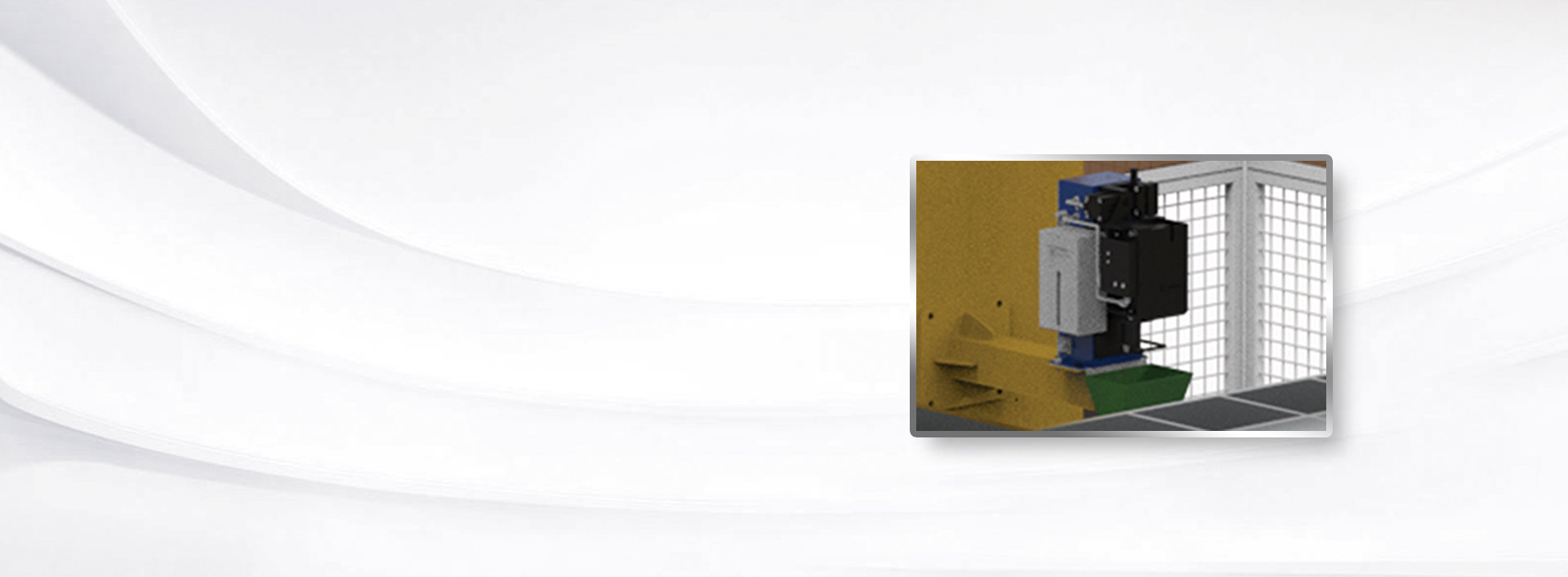

length direction according to the length of the workpiece configuration of different length seven-axis. At the same time, the robot is equipped with laser position-finding components, which reduces the precision

Multi-Angle Coordination

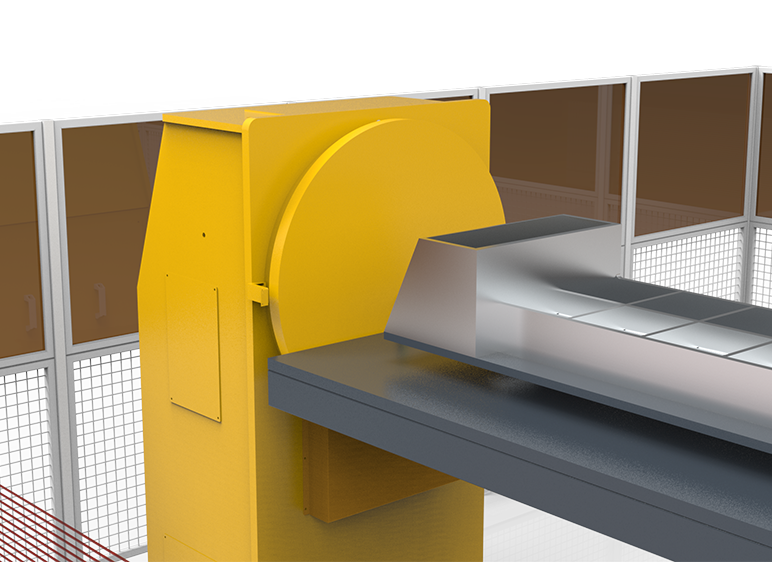

Optional single-axis vertical turnover indexer can coordinate the robot to complete the welding of work- pieces with weld seams in various angle directions.

Scalable Efficiency

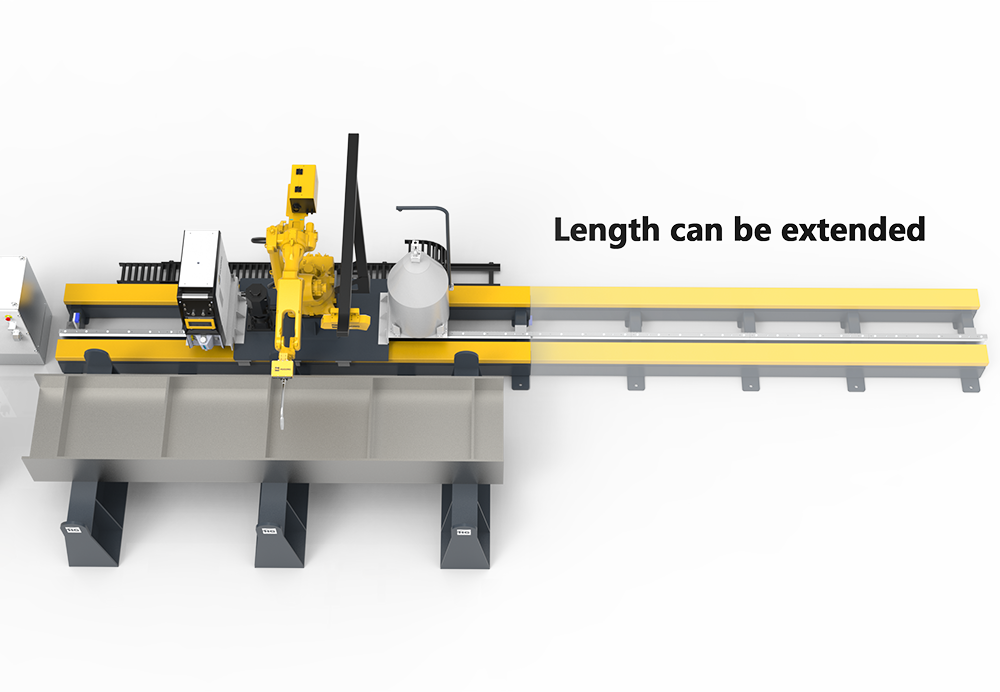

The robot can be added on the seven-axis expansion to improve the production tempo and reduce the equipment footprint.

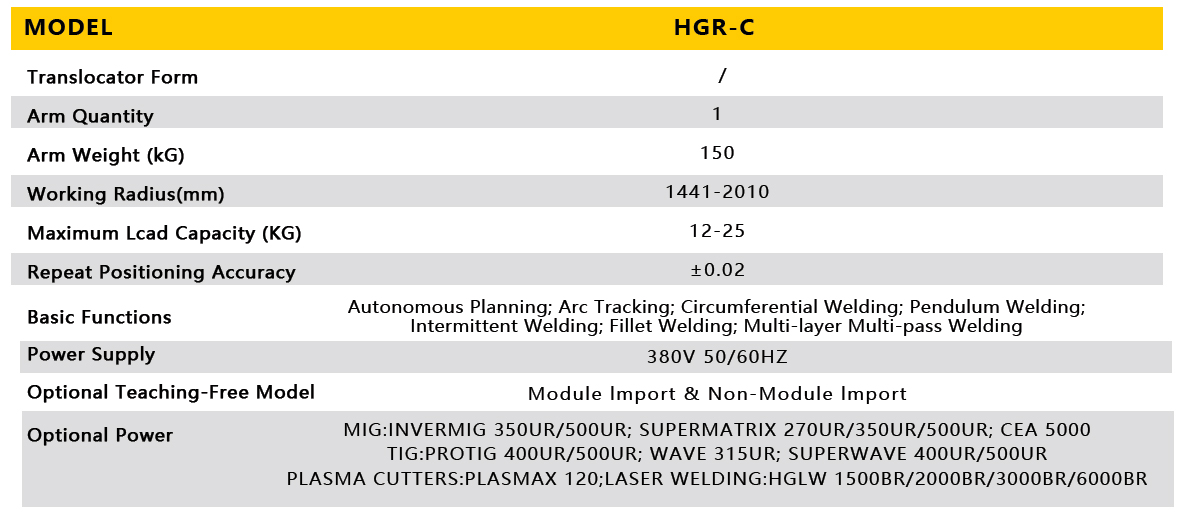

Model	HGR-C
Translocator Form	‌/
Arm Quantity	1
Arm Weight (KG)	150
Working Radius(mm)	1441-2010
Maximum Lcad Capacity (KG)	12-25
Repeat Positioning Accuracy	±0.02
Basic Functions	Autonomous Planning; Arc Tracking; Circmferential Welding; Pendulum Welding; Intermittent Welding; Fillet Welding; Multi-pass Welding;
Power Supply	380V 50/60HZ
Optional Teaching-Free Model	Module Import & Non-Module Import
Optional Power	MIG:INVERMIG 350UR/500UR; SUPERMATRIX 270UR/350UR/500UR; CEA 5000TIG:PROTIG 400UR/500UR; WAVE 315UR; SUPERWAVE 400UR/500URPLASMA CUTTERS:PLASMAX 120;LASER WELDING:HGLW 1500BR/2000BR/3000BR/6000BR
