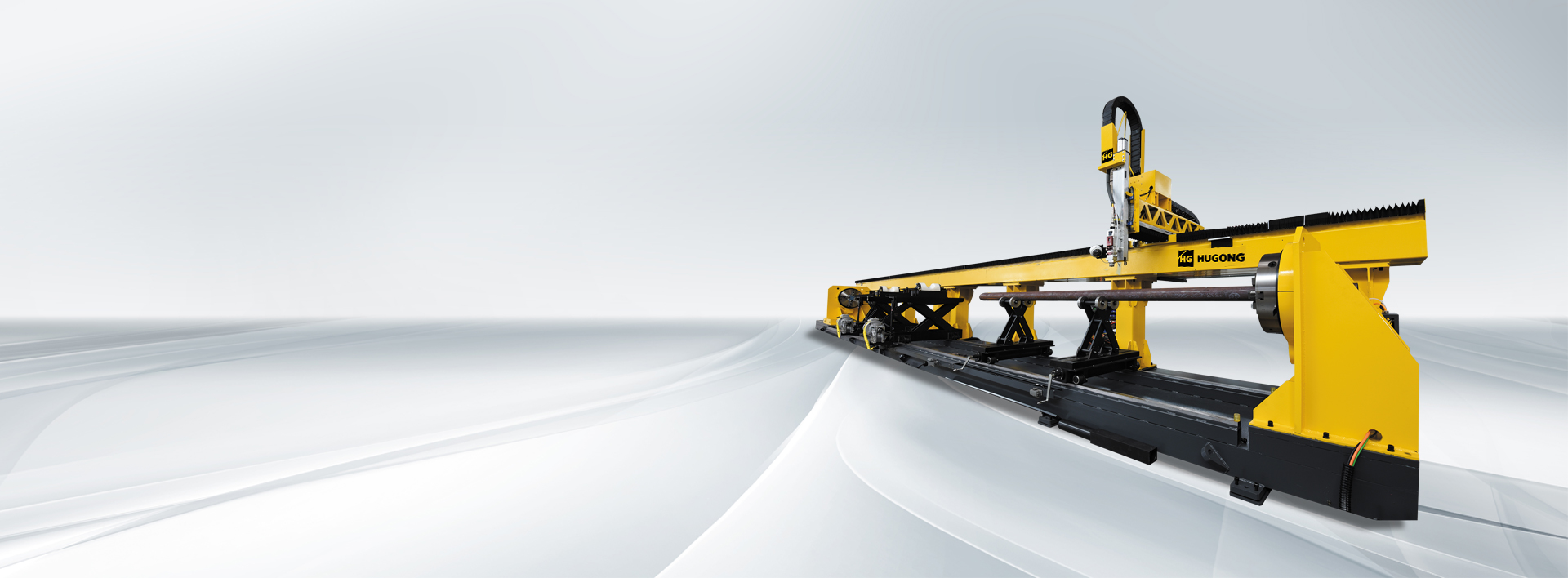

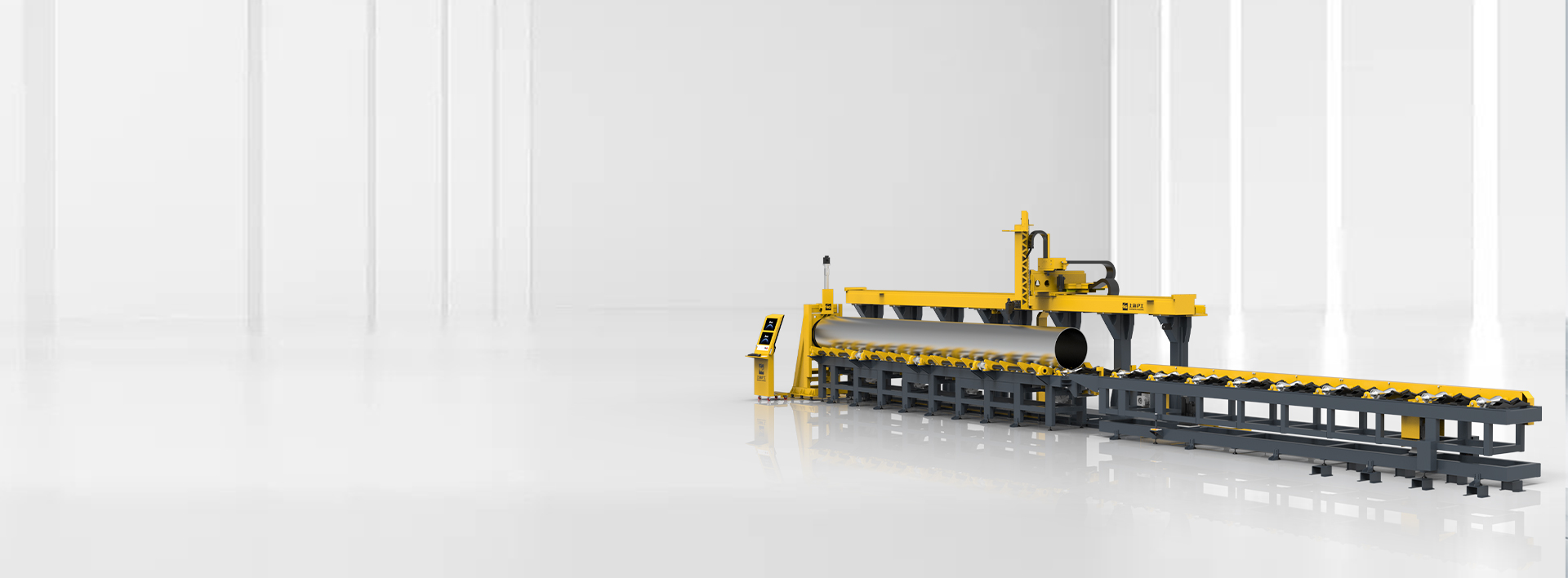

CNCG series (UP TO 40KW)

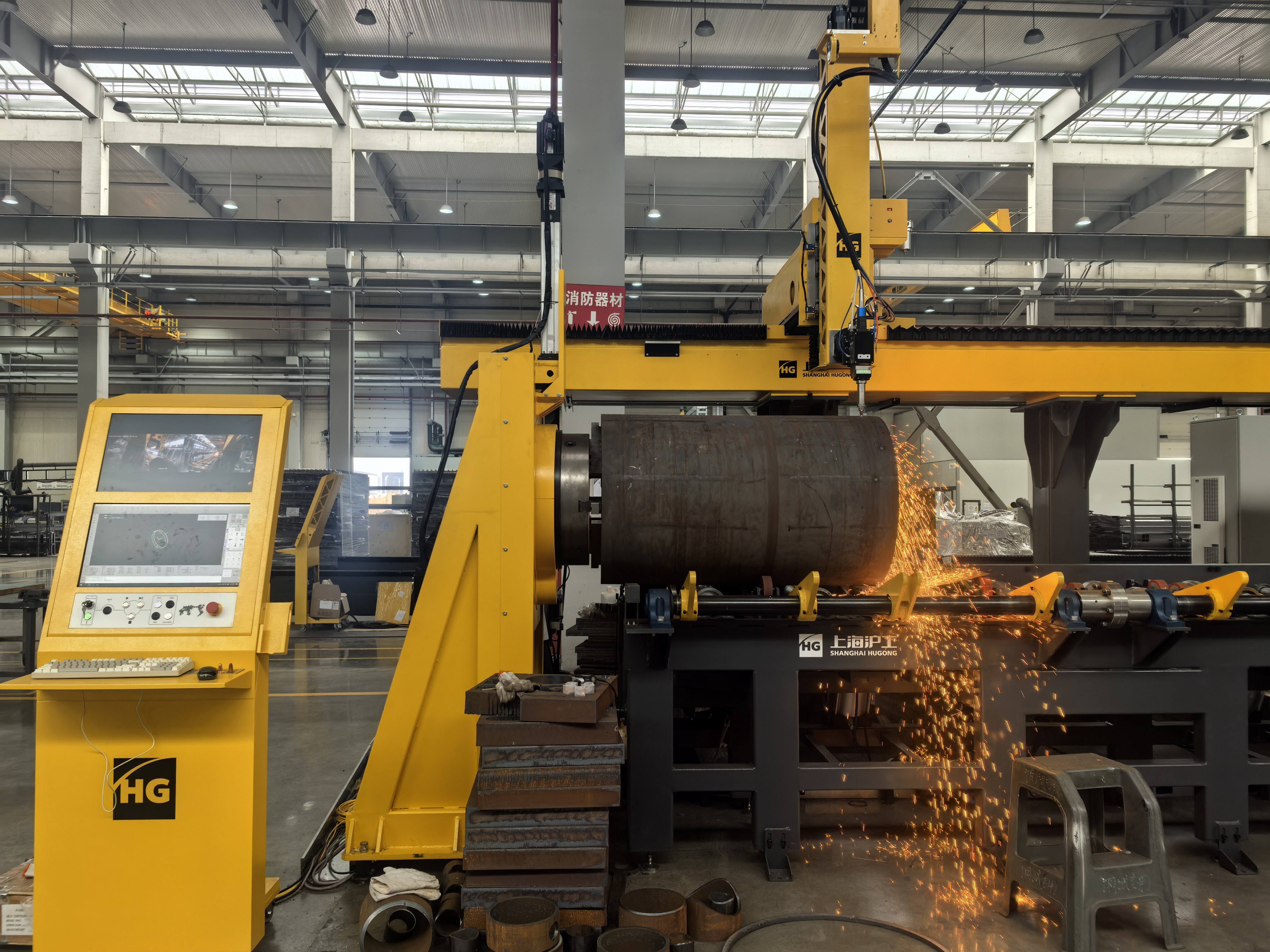

Laser cutting

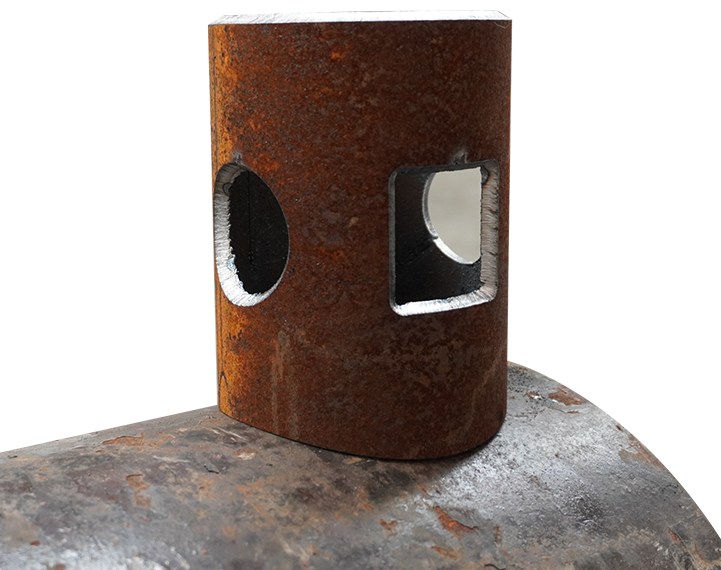

In addition to the straight cutting mode, it can also cut accurately,coherent holes, saddle mouths, intersections, curved mouths and V-type Y-type welding bevels and others. The maximum power is up to 40Kw.

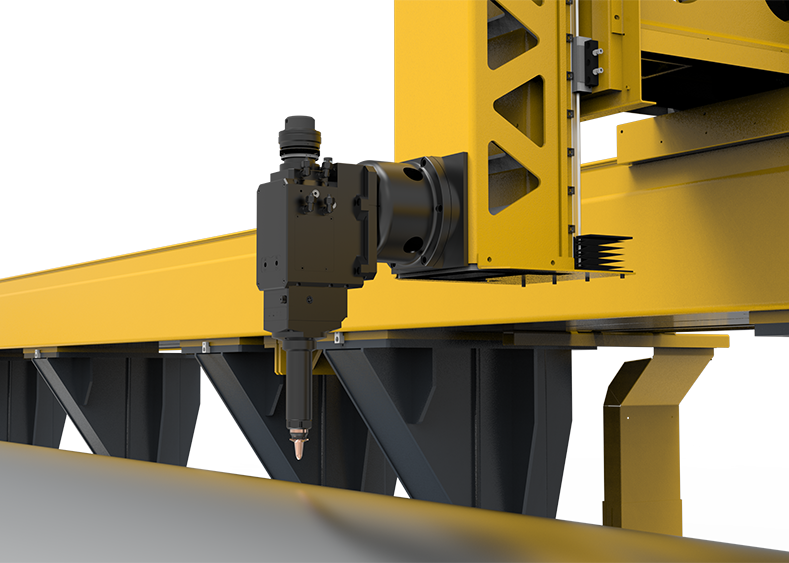

Five-axis linkage RTCP function

Realize five-axis linkage complex mouth cutting through RTCP algorithm and A\B-axis interpolation, which greatly improves the processing precision and efficiency and greatly reduces the interference problems that may arise during the cutting process.

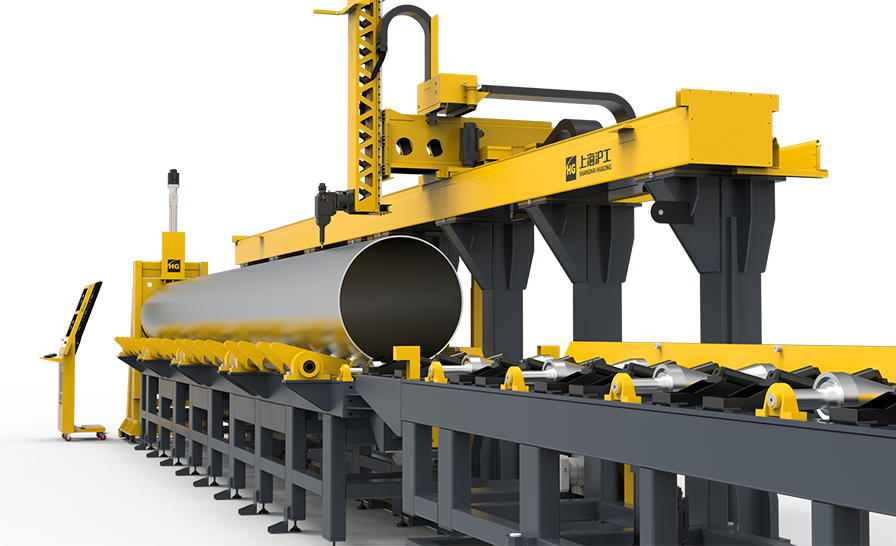

Large load design

The maximum load can be up to 2000kg, covering a variety of large-diameter pipe cutting needs.

Ultra-thickness cutting

Cutting thickness ranges from 3-40mm to meet the precise cutting needs of large-diameter long work piece.

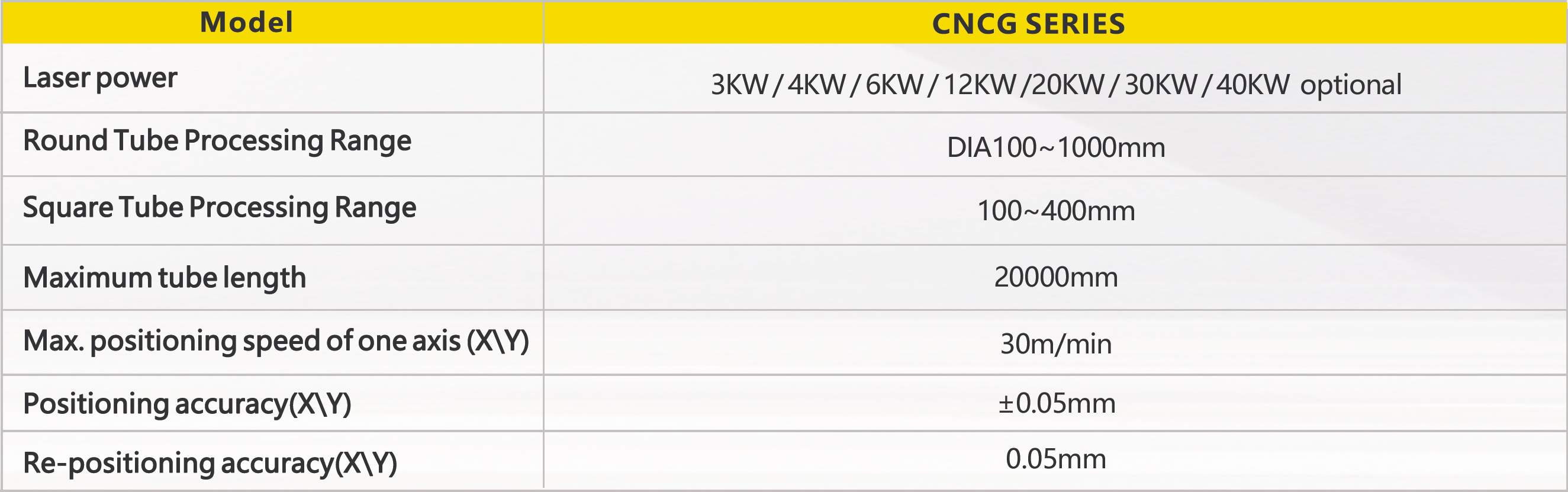

Model	CNCG SERIES
Laser power	3KW/4KW/6KW/12KW/20KW/30KW/40KW optional
Round Tube Processing Range	DIA100~1000mm
Square Tube Processing Range	100~400mm
Maximum tube length	20000mm
Max positioning speed of one axis (X\Y)	30m/min
Positioning accuracy(X\Y)	2+0.05mm
Re-positioning accuracy(X\Y)	0.05mm
