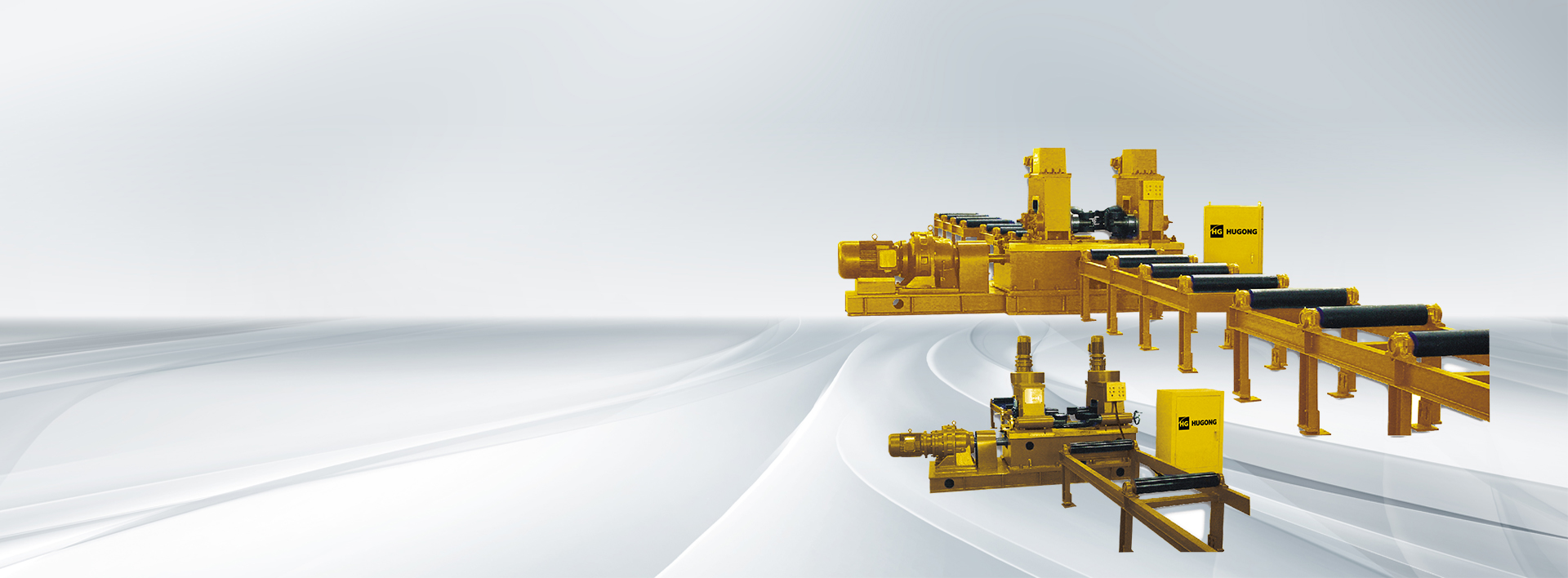

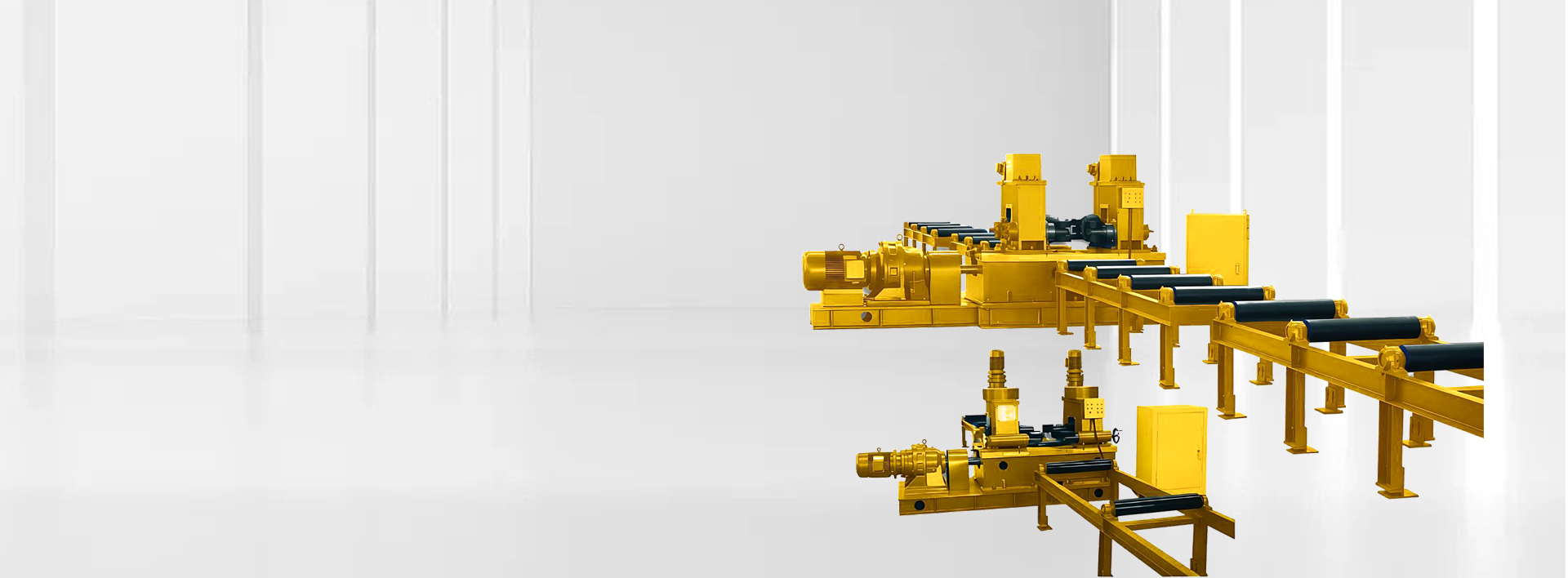

HGFS-800

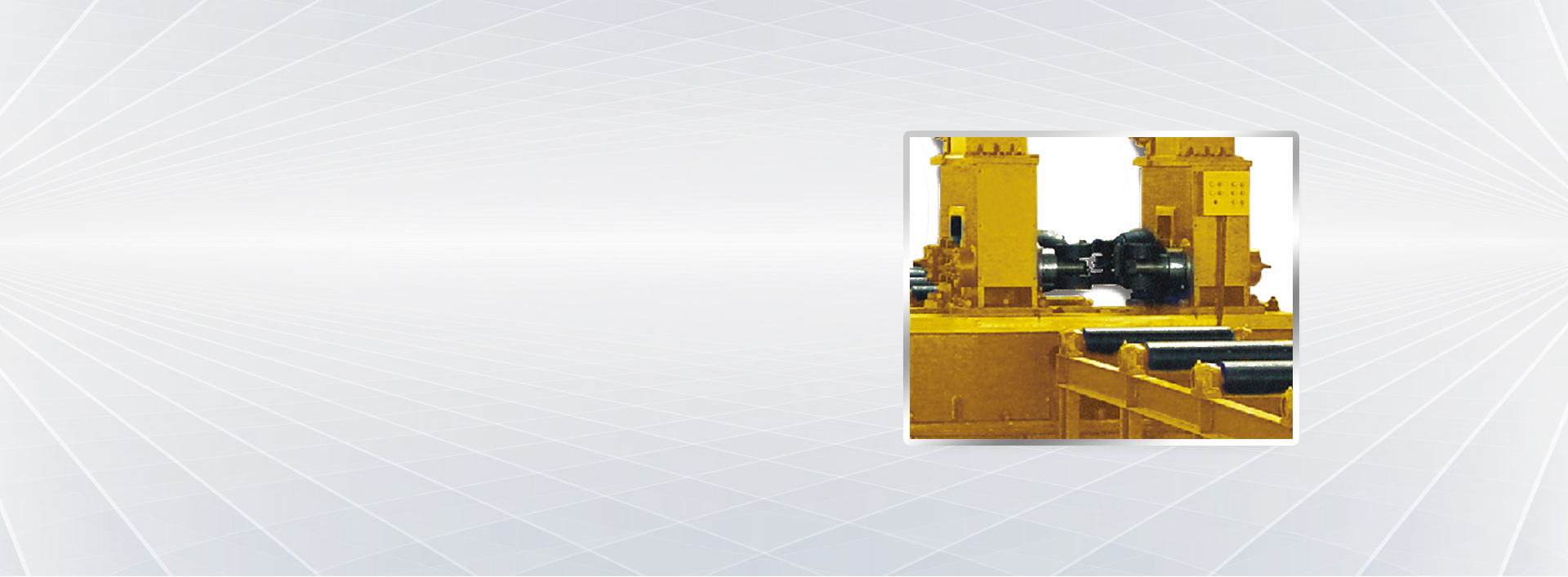

Upper & Driving Roller Synergy

Mainly for and H-Beam steel straightening.flange girth steel may deform if welding seam shrink. this equlp-
ment currently is better for flange firth steel straightening. working principle bases on upper roller and driving r
oller working together. when fhange girth steel on roller moving to operation area will be straighetened by force.
the preset force is stronger than steel yield stress. and the elastic recovery coefficiency is so small that the steel
will be straightened.

Thickness-Width Ratio

When flange girth steel thickness is 40mm. the width should be 400mm+25mmx(40-32)=600mm

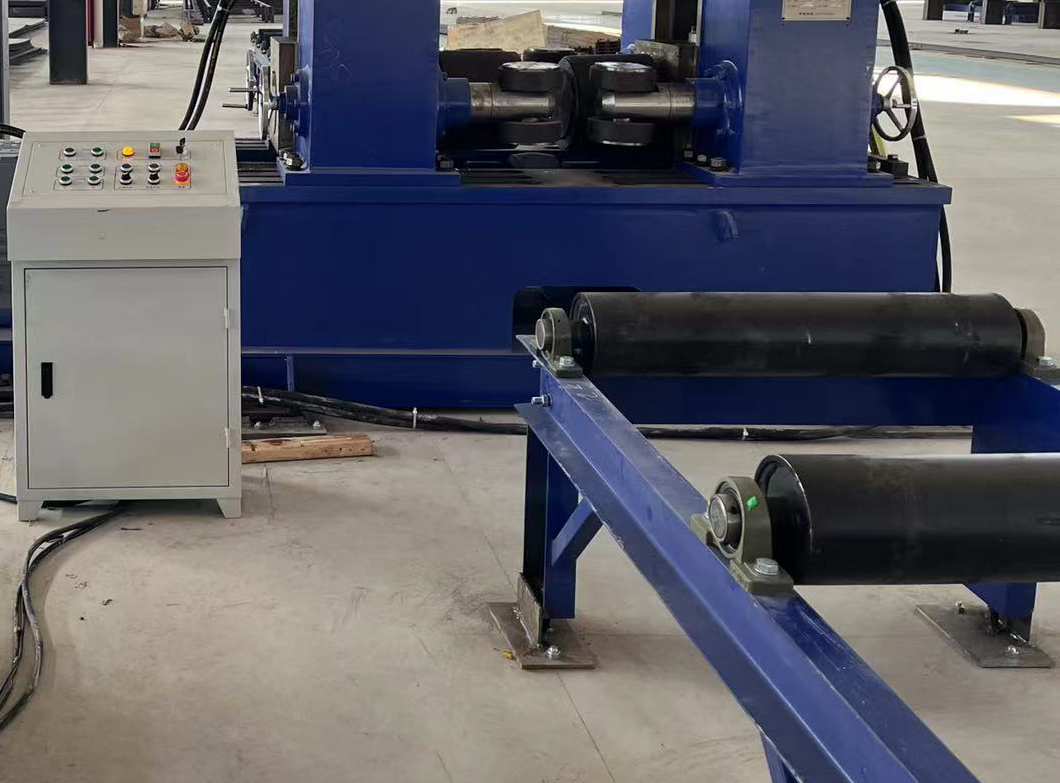

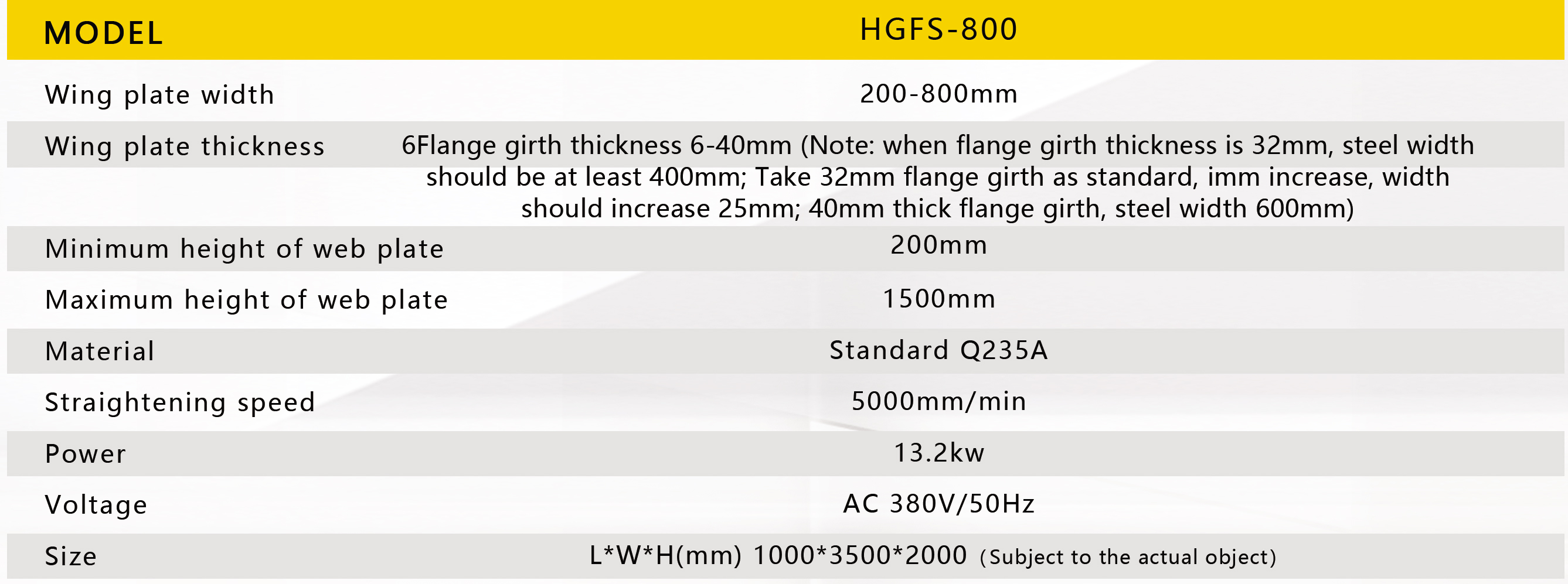

Model	HGFS-800
Wing plate width	‌200-800mm
Wing plate thickness	6Flange girth thickness 6-40mn(Note: when flange girth thickness is 32mm, steel widthshould be at least 400mm; Take 32mm flange girth as standard, imm increase, widthshould increase 25mn; 40mm thick flange girth, steel width 600mm)
Minimum height of web plate	200mm
Maximum height of web plate	1500mm
Material	Standard Q235A
Straightening speed	5000mm/min
Power	13.2kw
Voltage	AC 380V/50Hz
Size	LWH(mm)100035002000 (Subject to the actual object)
