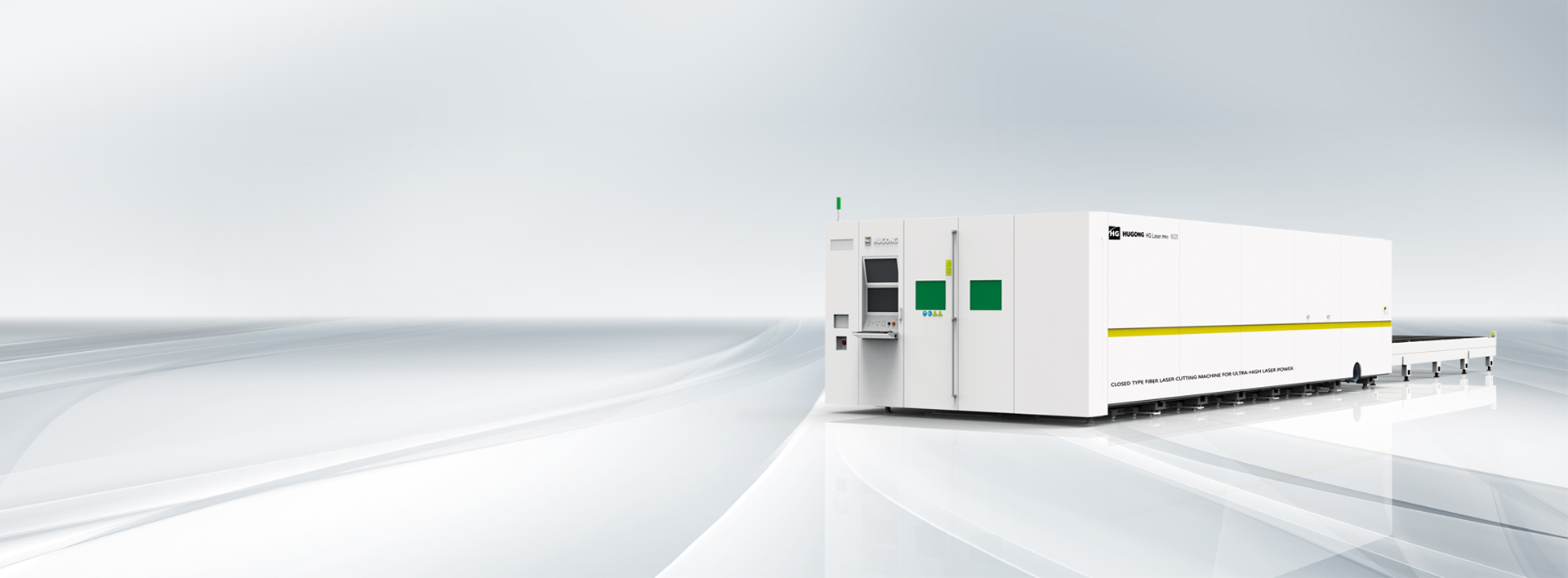

HGLASER PRO series (UP TO 30KW)

High machining accuracy

The well-designed high-precision and high-rigidity transmission system makes the equipment excellent motion rigidity, Ensure accurate track of cutting under high-speed travelling.

High cutting efficiency

Uniaxial acceleration of X/Y can be 1.5G, The number of cutting holes can be up to 820 per minute.

Flexible product processing mode

Not limited by batch and graphics, Generate graphics and cut at any time.

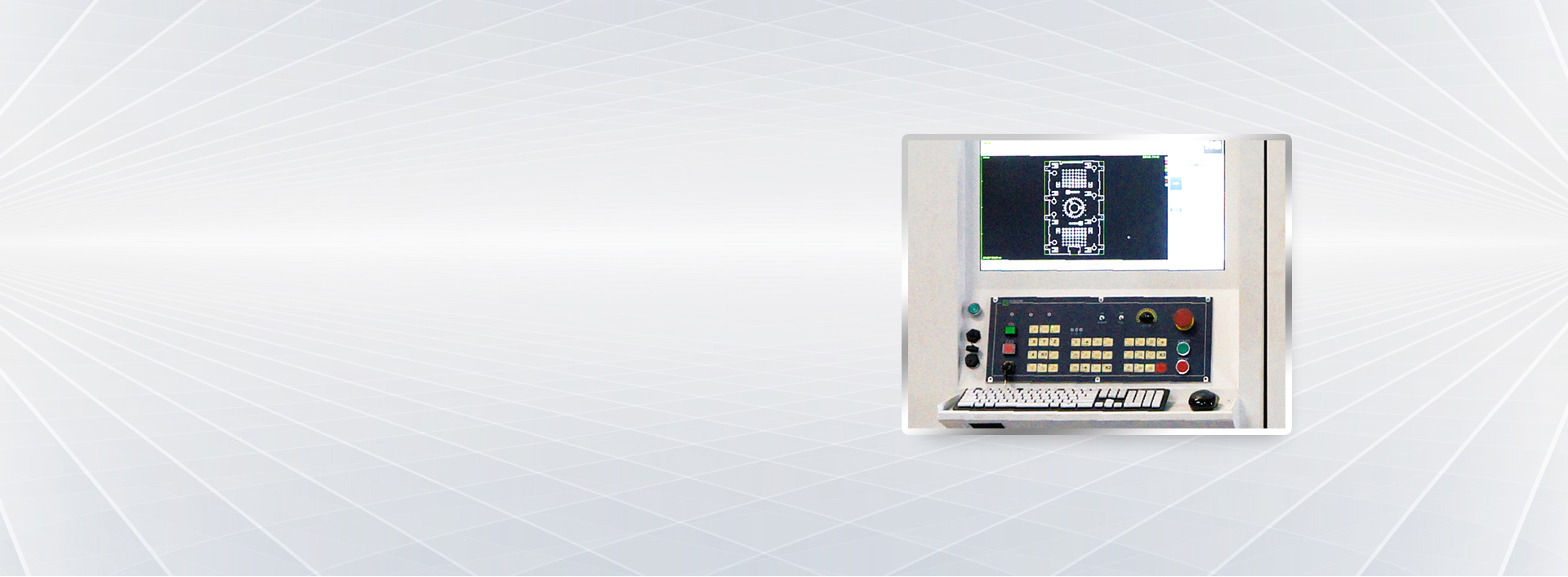

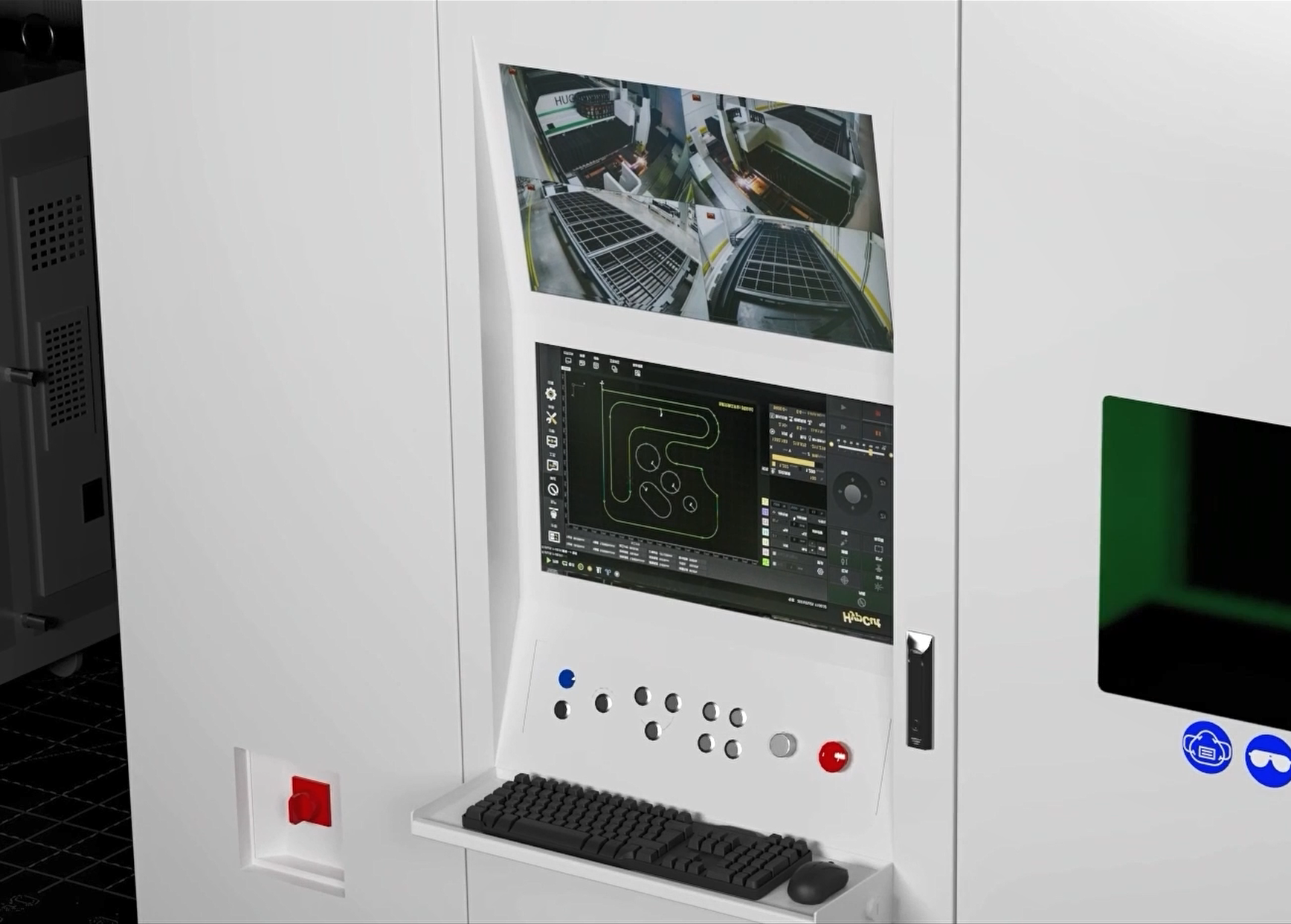

Professional and powerful control system

Deeply developed CNC system makes various complex functions easy to use and the cutting processing professional and efficient.

Model	HGLASER-3015	HGLASER-4015	HGLASER-4020	HGLASER-6015	HGLASER-6020	HGLASER-6025
Effective cutting size (mm)	3000x1500	4000x1500	4000x2000	6000x1500	6000x2000	6000x2500
Laser Power range	1.5KW / 2KW / 3KW / 4KW / 6KW / 12KW / 20KW / 30KW optional
Max linkage speed	110m/min
Maximum acceleration	1.5G
positioning Accuracy	+0.03mm
